How to Wire a Ceiling Fan with Switch & Dimmer

We use ceiling fans in every room and in-room¬†wiring thewiring a ceiling fan” is a very important thing in a room, there for this post is also about the complete method of wiring of ceiling fan with a dimmer switch and a one-way switch. In Electric wiring, we use a dimmer switch and a one-way switch for ceiling fan control.

How to Wire a Ceiling Fan From Switch and Dimmer Switch



Requirements :

AC Supply 110 to 220 volts
Ceiling Fan
Switch: One-way switch OR Single way switch
Dimmer Switch

Wiring A Ceiling Fan Diagram

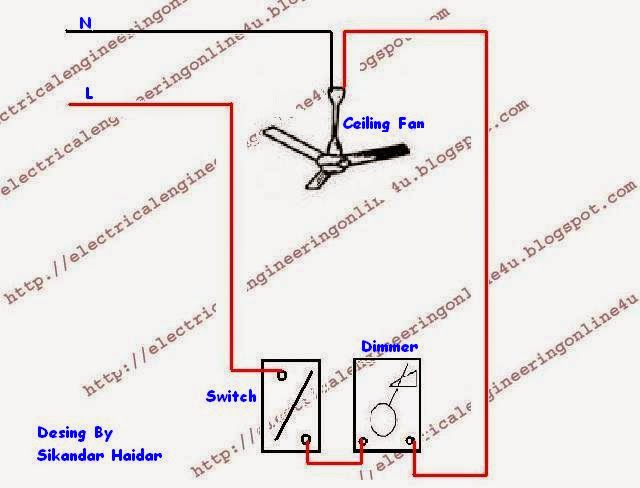

For this type of wiring connection first of all you have the above things and then switch off your incoming supply main circuit breaker and then start wiring. First of all connect the (N) neutral wire to the ceiling Ross, or fan and then connect the L wire (phase wire) to the switch then connect a wire between the 2nd terminal of the switch and the dimmer, and then connect a wire between to 2nd terminal of dimmer switch and connect this electric wire to the fan as shown in the below diagram / Image.

wiring a ceiling fan diagram

In the above example of wiring ceiling fan diagram, I have shown a complete diagram of ceiling fan wiring with switch symbol and dimmer switch symbol, and I hope you learn after that how to wire the dimmer switch. Now if you have any questions regarding this diagram/post then write your comments in the below comments box.
