This post is about the single phase 4 pole induction motor winding diagram with centrifugal switch. or single phase motor with centrifugal switch wiring diagram. In the single phase 36 slots winding diagram. The main winding and starting or auxiliary winding connection shown. And how to connect the both winding with one another. How to connect the motor running capacitor and staring capacitor. How to the centrifugal switch connection with capacitor and winding.


4 pole induction motor winding diagram with centrifugal switch and capacitors.



In the below 4 pole motor winding diagram. The main winding connection shown, and also the starting winding connection shown. The both winding connection shown with power supply ACV.

A centrifugal switch is used for starting capacitor. Note that the centrifugal switch is also called starting switch.

4 pole induction motor winding diagram

Continue reading

at 2
A platform to learn electrical wiring, single phase, 3 phase wiring, controlling, HVAC, electrical installation, electrical diagrams.
Star delta starter control circuit diagram is today topic. In my last post I share a star delta starter wiring diagram 3 phase motor connection. In this post you will learn complete star delta starter wiring with timer, normally open push button switch and normally close push button switch. For high load 3 phase induction motor we use the star delta starter. which includes 3 magnetic starter, Overload motor protection relay, NO/NC push button switch, On delay 8 pin timer and electric wires.

To learn about the motor connection with star delta starter click the below link

Star Delta starter 3 phase motor diagram

Star delta starter control circuit diagram

star delta starter control circuit diagram


The above 3 phase star delta starter control circuit diagram is too simple to understand, Also read the below post:

Also read:
Direct online starter animation diagram
Forward Reverse 3 phase motor wiring starter diagram
8 Pin On delay wiring diagram
Three Phase Failure Wiring and Installation Diagram

Continue reading

at 5
A platform to learn electrical wiring, single phase, 3 phase wiring, controlling, HVAC, electrical installation, electrical diagrams.
Star delta starter wiring diagram, this post is about the main wiring connection of three phase motor with star delta starter and control wiring diagram of star delta starter. For three phase motor we use the direct online starter but mostly for small three phase motor. But high load 3 phase motor we use the star delta starter for motor controlling. A star delta starter is type of motor starter which run 3 phase motor in star in starting time. And when the motor start, after some time it's run the motor in delta connection.

Star Delta Starter Wiring Diagram 3 Phase


To make a star delta starter you need...

1 MCCB Circuit Breaker
3 magnetic contactors
3 phase motor thermal overload relay / Electronic overload relay OCR
A on daily timer (8 pin timer with 8 pin glass type relay socket/base)
1 Normally close push button switch
1 Normally open push button switch
Electric wires for main motor wiring
Electric wires for controlling wiring

Star Delta Starter Wring For 3 Phase Motor Diagram


Here I shown the complete star delta starter wiring diagram 3 phase. The three phase supply shown with RED, Yellow And Blue Coolers.- All connection with a 3 phase induction motor.



star delta starter wiring diagram



The above is a star delta starter wiring diagram 3 phase motor for main wiring. Now let's see the star delta starter control circuit diagram with timer, NC/NO push button switches.

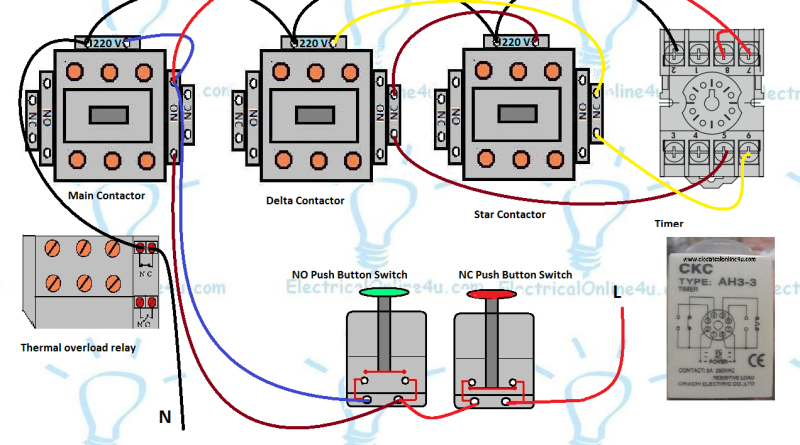

Star delta starter control circuit diagram


star delta starter control circuit diagram


In the above star delta starter control circuit wiring diagram with timer and normally close push button/normally open push button switch. In control wiring diagram all magnetic contactors coils are rated 220 VAC. A 8 pin timer are used. The on delay timer diagram is also shown in the diagram.

Also read:
Direct online starter animation diagram
Forward Reverse 3 phase motor wiring starter diagram
8 Pin On delay wiring diagram
Three Phase Failure Wiring and Installation Diagram



Continue reading
