In Controlling relays "14 pin relay" is numbering in those electromagnetic relays which we use in many circuit. In this post I am sharing a the 14 pin relay base wiring diagram. With 14 pin relay we use the base or relay socket in which the relay is inserted. In the 14 pin relay we have 14 pin or connection terminals in which the 4 terminals is common terminals, 4 terminals are N.C (normally closed) with common terminals, 4 terminals are N.O (normally open) with common terminals and 2 terminals for relay operating coils. This relay we use for different type of controlling circuits.
In this post you will learn about the 14 pin relay base wiring diagram. On the relay we have the wiring diagram in which all terminals shown with its working principles.
As I said above that in relay we have 14 pin which is numbered form 1 to 14.
In which :
13 and 14 are for relay coil
9 is NC with 1 and NO with 5
10 is NC with 2 and NO with 6
11 is NC with 3 and NO with 7
12 is NC with 4 and NO with 8

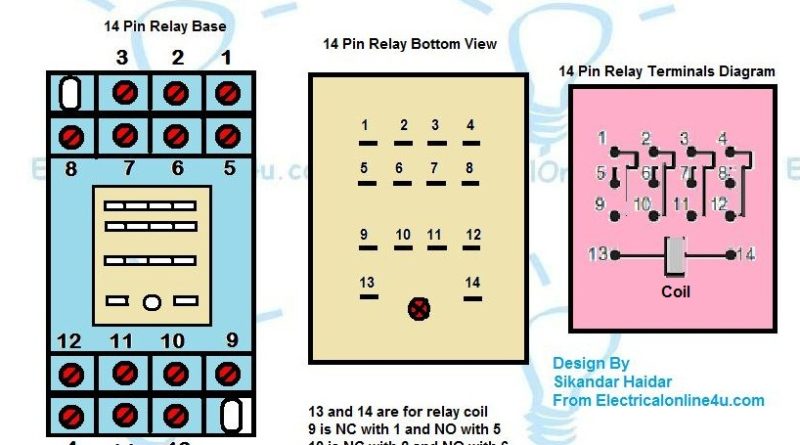

In the below I shown the 14 pin relay wiring diagram with 14 pin relay base. This is also the 14 pin relay base wiring diagram.
In the above 14 pin relay base wiring diagram or socket wiring diagram. I shown the 14 pin relay and it's terminals with numbers. Then I shown the bottom view of 14 pin relay and then 14 pin relay wiring diagram. The relay base will be wire according the relay. For example in relay we have 14 and 13 number terminals for relay operating coil. So in the base the 13 and 14 number terminals are for relay coil. Note that this relay can be different according the rated voltage and power source type. Mostly this relay available is market in DCV 12, DCV 24, ACV 220 Volts and much more. And mostly design for 5 Ampere load controlling.
Also Read
Digital Multi Voltmeter Ammeter Hz Wiring With Diagram
This post is only about the 14 pin relay basic wiring diagram. In next post we will use in different circuit for different type of controlling. I hope this 14 pin relay base wiring diagram and relay wiring diagram help you to use this relay in circuits.
